ZTM-K
ZONTAI
8441100000

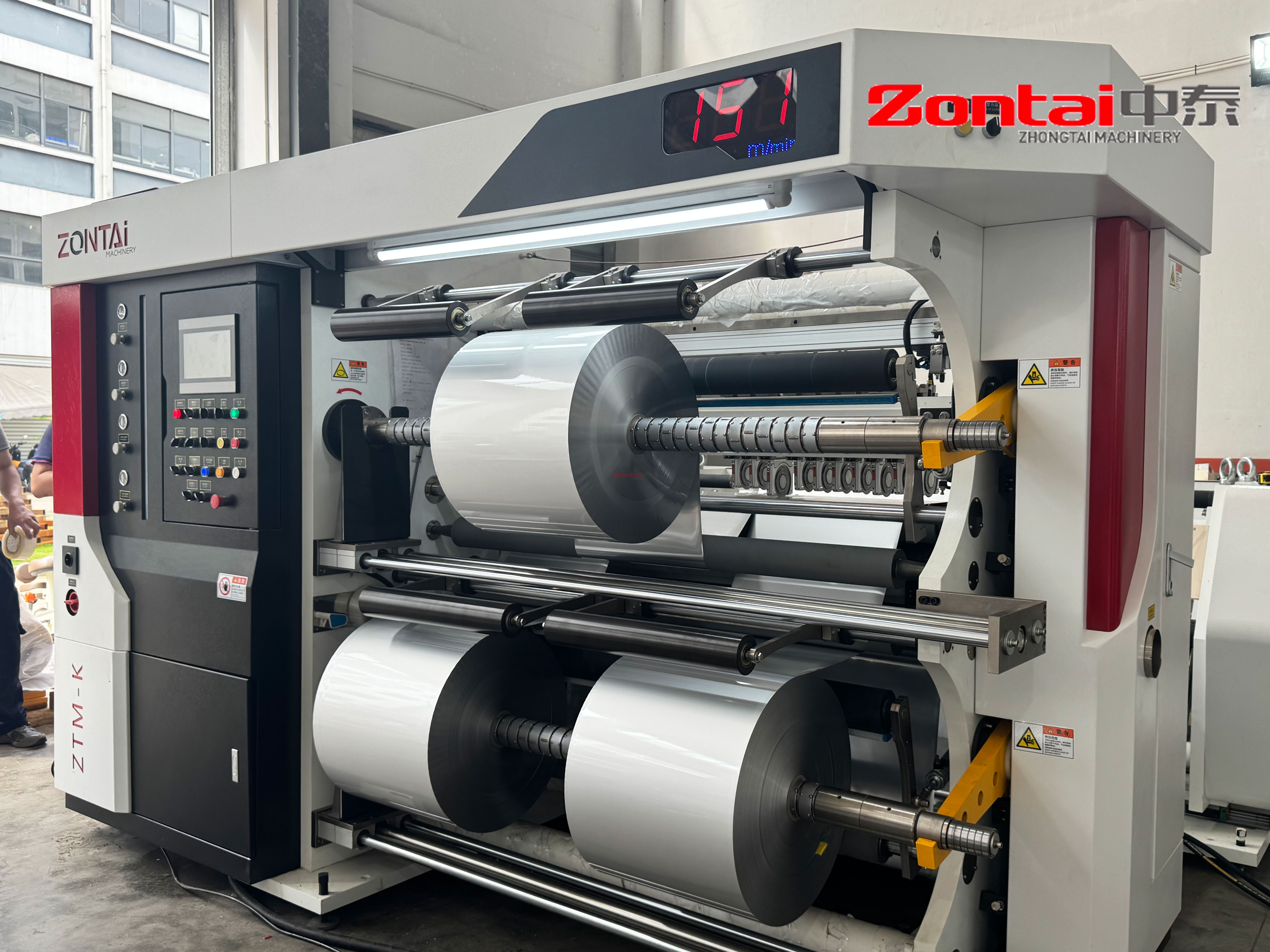

ZTM-K1300/1600 Servo drive Slitter Rewinder Machine
This machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, pearlised opp film, wrap around label film, IML film, In-mold labelling film, optical material, film rolls, paper rolls of printing of various materials, from 10-150micron thickness.
1) This machine is suitable for kinds of films and paper rolls industry. It's equipped with a high performace PLC micron-processor combined with movable colourful touch screen that operator is able to control both in rewinder

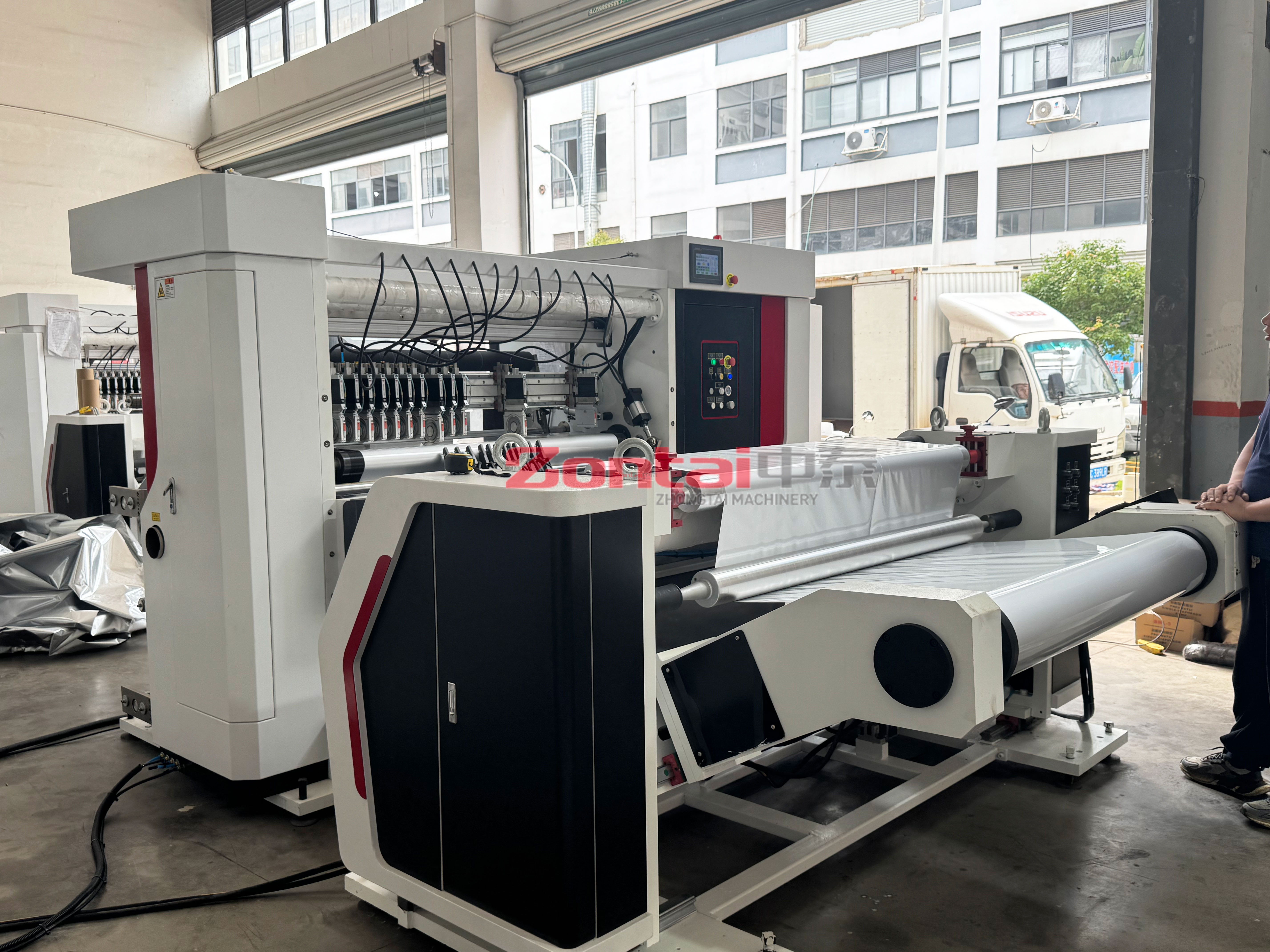

2) Unwinder seperated stand, with hydraulic auto loader, shaftless core 3inch and 6inch
3) Equipped with both razor knives and ciruclar knives in machine, suitable for both film rolls and paper rolls
4) Max working speed 500m/min
Main technical parameter:
Jumbo roll width | 1300mm | 1600mm |
Diameter of roll | 1200mm | 1200mm |
Diameter of rewinding | 600mm | 600mm |
Inner dia.of paper core | 76mm | 76mm |
Mechanical Slitting speed | 10-500m/min | 10-500m/min |
Tolerance of EPC | 0.1mm | 0.1mm |
Min.width of produce | 50mm | 50mm |
Total power | 15KW | 18kKW |
Weight | 7500Kg | 8000KGS |
Overall dimension (L X W X H) | 4.3mx4.5mx2.1m | 4.3mx4.8mx2.1m |
