| Quantity: | |
|---|---|

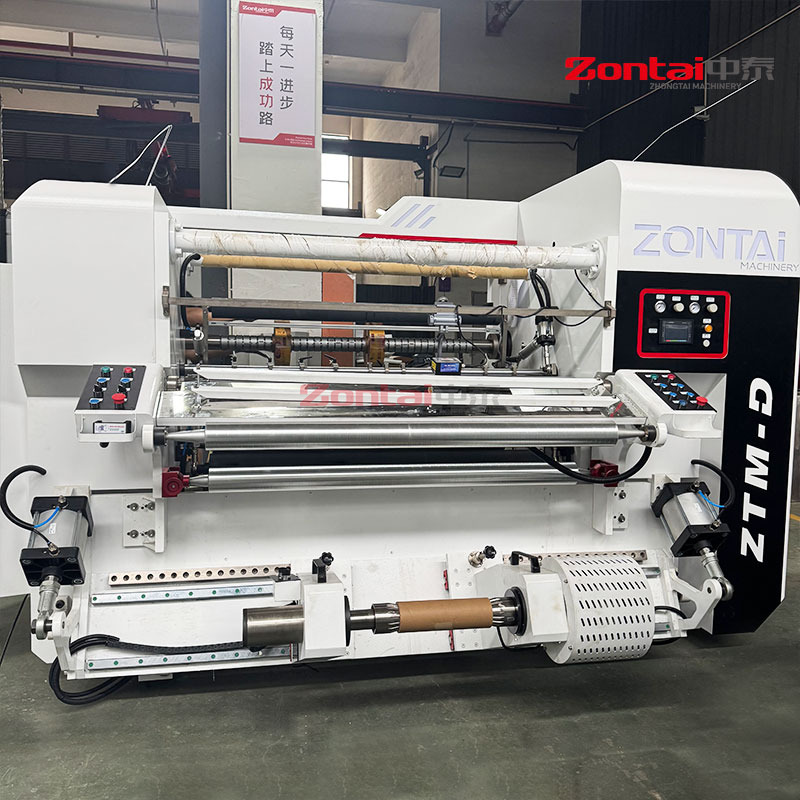

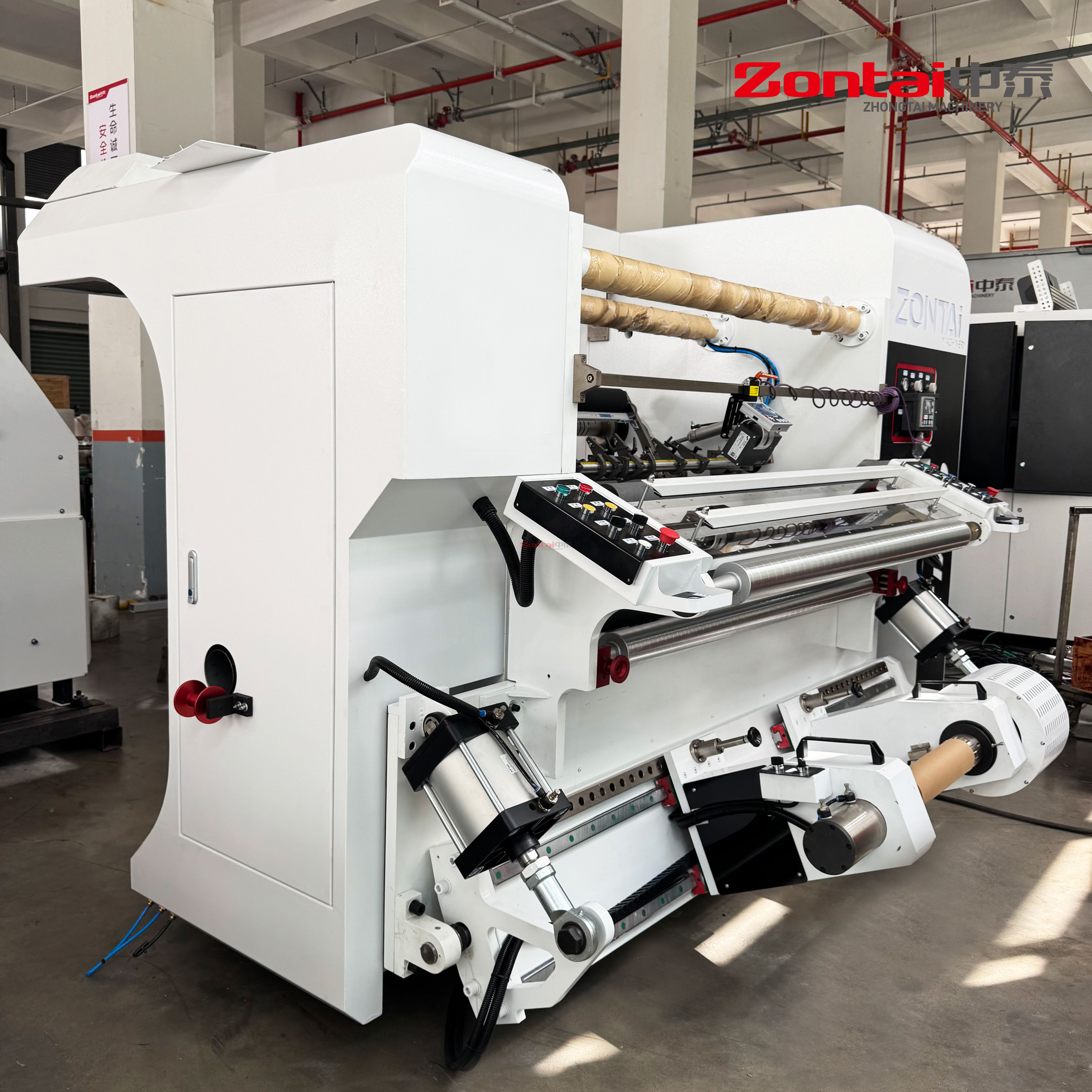

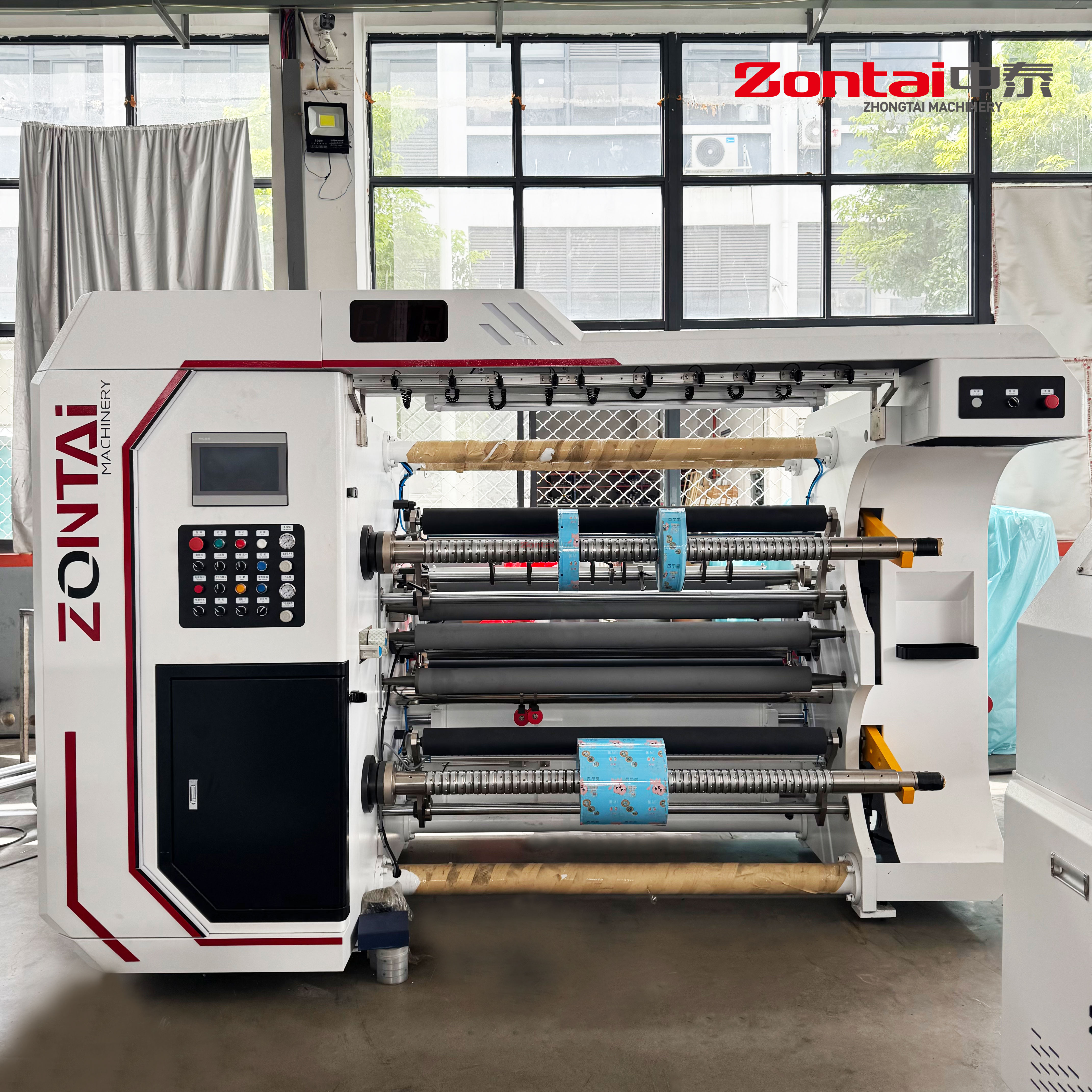

ZTM-D
ZONTAI
Uses:
The machine applies to PET, OPP, CPP, PE, PS, PVC , Aluminum foil, metalized film, pearlized film, etc film roll, foil roll, all kinds of laminated film, with or without printing of various materials to slitting.
Features:
1, Unwinding unit: Shaftless auto loader;
LPC for tracking both edge and printing marks,
Unwinding tension through magnetic brake and loadcell for close-loop auto tension.
2, Slitting Unit: 10 sets of razor knives
3, Rewinder shaft: 3inch friction shafts.
4, Rewind tension: proportional valves controlled.
5, Rewinder pressure unit: pressure rubber roller controlled by air cylinder
6, Waste edge processing section: blowing fan included.
7, Electrostatic elimination Unit: install in up and down rewinder part
8, Finished rolls unloading Unit: discharge rack
9, PLC control system: Siemens PLC and touch screen.
Main technical parameter:
Jumbo roll width | 1000mm | 1300mm |
Diameter of roll | 800mm | 800mm |
Diameter of rewinding | 600mm | 600mm |
Inner dia.of paper core | 3''(6'') | 3''(6'') |
Slitting speed | 10-400m/min | 10-400 m/min |
Tolerance of EPC | +-0.1mm | +-0.1mm |
Min.width of produce | 50mm (30mm) | 50mm (30mm) |
Total power | 12KW | 12KW |
Weight | 3800Kg | 4000kg |
overall dimension (LxWxH) | 2.2mx4mx2.1m | 2.2mx4.3mx2.1m |
Optional device:
1, 6inch rings for rewinder shaft
2, auto push device for rewinder rolls
3, trimming edge rewinder machine
